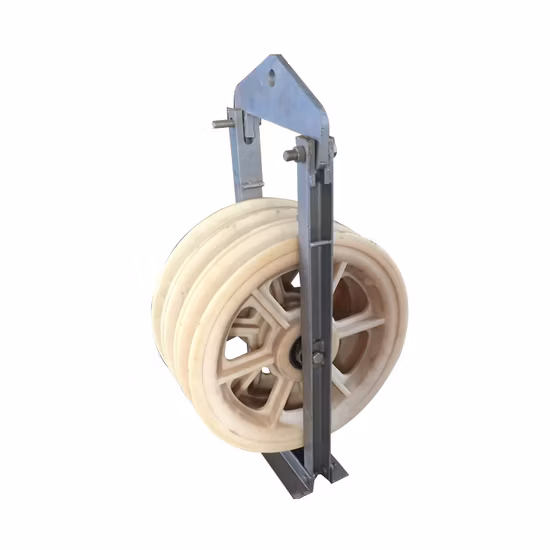

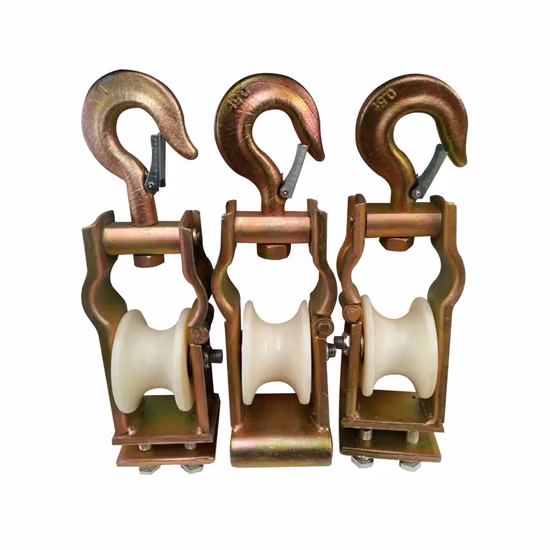

Hoisting Pulley Block Cable Pulling Roller Nylon Aluminum Cable Roller

Basic Info.

Model NO.	LT-CR14
Frame	Steel,Galvanized
Size	Customized
Transport Package	Carton
Specification	cable roller
Trademark	LongTime
Origin	Hebei, China
Production Capacity	20000pieces/Month

Product Description

Hoisting pulley block Cable Pulling Roller Nylon Aluminum cable roller
Cable roller is widely used in engineering machinery, electric power,petroleum, mining,coal,metallurgy, paper making,construction,port,cable and oher industries, cable tunnels show exhibition place or on the ground put the extension cable and wire release. The product is divided into single -round and three, non- fragile cables. They run maintennance-free on dirt and duct-proof bearings. The robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions, Corner cable rollers: guide the cable surely round each curve and cable friction is minimized. Even heavy duty cables run lightly off the rollers. The required winching power is considerably reduced and winching wires are no longer abraded as much

Nylon cable roller	260*330*230mm(H*L*W)
Aluminum cable roller	260*330*230mm(H*L*W)
Nylon wheel	140*160mm(Dia*Width)
Aluminum wheel	140*160mm(Dia*Width)

Feature of Cable laying pulling roller cable trench roller1. Able to carry high loads2. With chromel steel ball bearing3.With a high load bearing capacity4. Self-lubrication, precision machined and low friction5. Low noise,stable performance and durable6. Able to work in sub-zero temperatures and have low rolling resistance7. Suitable for countless applications: sliding pipe, machine equipment and other sliding systems.
More type cable rollerCable rollers can be divided into ground cable pulleys, power cable pulleys, overhead string pulleys, nylon pulleys, cable wire guide pulleys, large-diameter pulleys, dual-use cable tackles, and lifting pulleys. It is mainly used for protection when laying cable conductors. It saves time and effort. The purpose of the ground cable pulley is to change the direction of cable extension and to protect the cable from friction.Hot sale mainly includes straight cable rollers, corner cable rollers, triple cable rollers, and some other rope cable roller and specialist cable rollers for pulling underground cables into trenches and ducts .
Application of cable rollerCable rollers should always be used when pulling cables.Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable beingdragged on the trench bottom or in mud.Cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench.Cable laying applications with bends in the route require skid plates of a radius greater than the cables minimum dynamic bending radius.

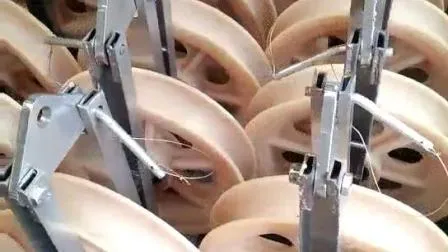

Cable roller usually packed by carton
